Aquaphon A-200 Ground Microphone Kits (Leak Listeners)

Electro-acoustic water leak detection

When a pressurized pipeline develops a leak, water flows through it into the surrounding soil at high speed. As a consequence of this:

The pipeline material vibrates at the exit point. This vibration is transmitted by the pipe, with the result that it can be picked up even at remote contact points (e.g. valves & fire hydrants). This structure-borne noise is rendered audible by the AQUAPHON® A200.
The water jet and the pipe, in the vicinity of the leak also induce vibration in the soil. This is transmitted to the surface, where it can be picked up as ground-borne noise.

Key Benefits

Structure-borne sound is not transmitted as well by non-metallic pipe materials. Taking readings at the valves is not enough; the sections between valves must also be checked with a ground microphone.
Using the ground microphone at brief intervals enables the leak to be located with sufficient accuracy for excavation.
The AQUAPHON® A200 receiver indicates a precise optical comparison of the noise intensities.

The importance of listening

Combined with the advantages offered by the graphics of the integral LCD, the human ear remains an important tool for assessing incoming noises. Practice enables noises of different types and tones to be differentiated and actual leak noise to be distinguished from extraneous noise. To assist the operator the AQUAPHON® A 200 is supplied with headphones that provide outstanding sound reproduction.

Preliminary location using the test rod

In metallic pipes structure-borne sound is transmitted over particularly long distances. This makes the TM200 test rod very effective for preliminary location.

Using T-4 Test Rod

Location with the ground microphone

Structure-borne sound is not transmitted very well by non-metallic pipe materials.
Taking readings at the valves with the test rod may not lead to satisfactory results. In these cases, by using the ground microphone, the sections between valves should also be checked.

Using the ground microphone at regular intervals enables the leak to be located with sufficient accuracy for confident excavation.

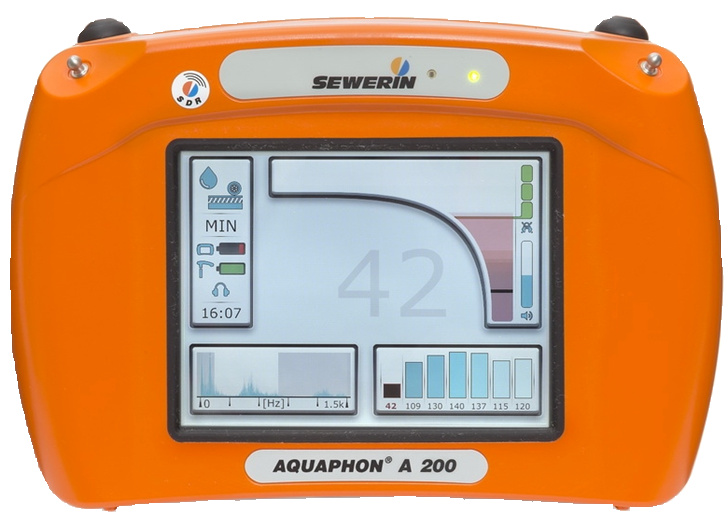

The AQUAPHON® A 200 shows a precise display comparison of the noise levels between locations.

Is the noise getting louder or quieter? What is the trend? The LCD digital and analogue display is of great assistance, especially for beginners or less experienced operators, in answering these questions.

BO-4 BO-4

The hearing protection function

When developing the AQUAPHON® A 200 an important consideration was providing the operator with protection from accidental exposure to high noise levels. With other instruments an uncomfortable sound level can be heard when the test rod slips from the contact point, or the headphones are activated too soon, or not soon enough, or something falls close to the ground microphone.

A novel technology makes this danger a thing of the past. The incoming noise is constantly analyzed. When a very loud noise is picked up the sound in the headphones is immediately muffled. If the noises increase even further, the headphones finally are switched off completely.

Once this noise source has ceased the AQUAPHON® A200 automatically reverts to normal. The hearing-protection function can be adjusted to suit the wearer's comfort in any given environment.

The filter-optimization function

The filter-optimization function of the AQUAPHON® A200 allows it to detect a leak even when the sound is very muffled.

The receiver takes a noise sample with the ground microphone. This is automatically analyzed and the instrument automatically sets the optimum frequency range to render the sound of the leak particularly clear.

Specifications

A-100 Kit

AQUAPHON^® A 200 System Components

(Note: Components are kit dependent)

Ground microphone BM200
Ground microphone BM230
Wireless Carry Handle T200
Test Rod TM200 with various adapters
F6 Wireless Headphones, Stereo
Charging Adapters for Mains & Vehicle
AQUAPHON^® A-200
Carrying system "VARIO"
Microphone UM200
Carry Case SK4

3P-4 3P-4 3P-4

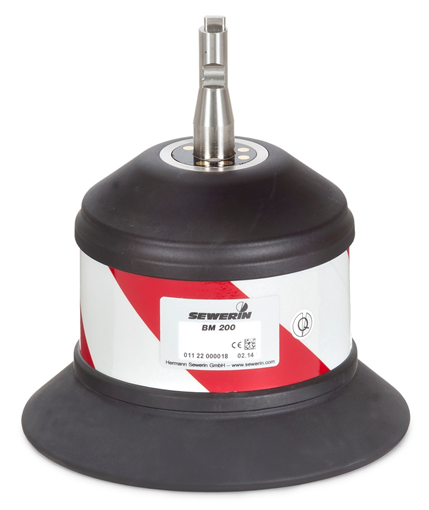

The Ground microphone BM200 is especially suitable for paved surfaces.
The outside housing of the microphone is acoustically insulated from the internal microphone. The microphone body is mounted in a flexible rubber membrane which can move freely within the housing and it is therefore unaffected by rugged surfaces.

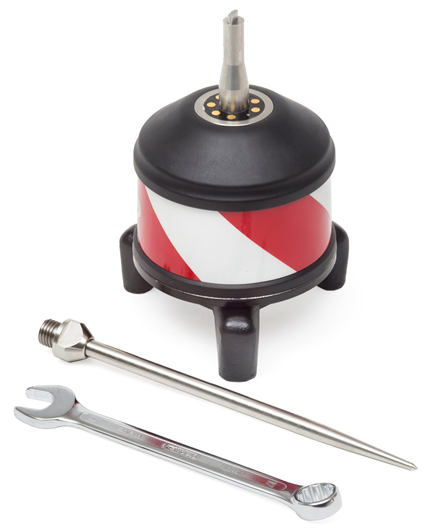

The Ground microphone BM230 is for use on unpaved surfaces. A ground spike (supplied) can be screwed on for use in soft ground. Its tripod foot ensures stable contact at all times.

Easy-to-maintain microphones. As all but one are wireless, cable wear is eliminated.

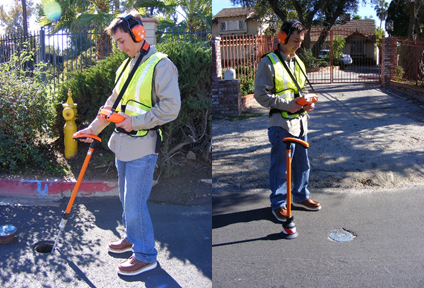

EM30 Field Use 3P-4

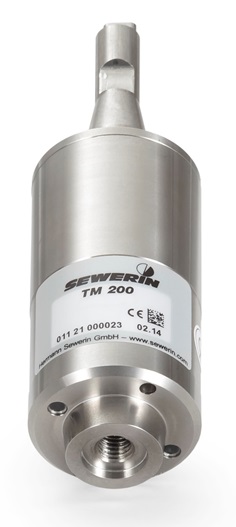

Leak detection within structures can involve working in some tight locations. To carry out this work we provide the small, light, microphone TM200 complete with short probe tip. Also available: Magnet, tripod and compact case.

Technical Data

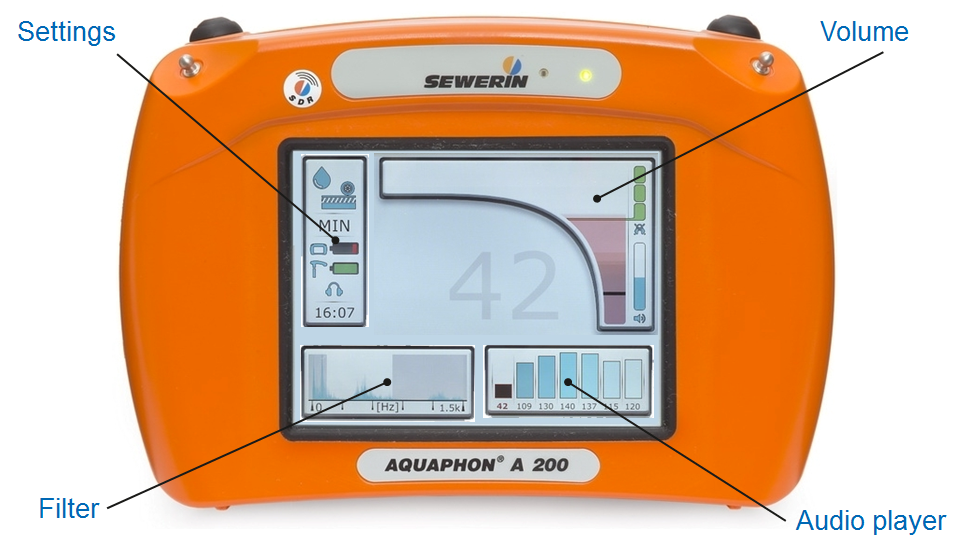

Color Touch Screen
Wireless Headphones
Wireless Sensors
Automatic microphone recognition - appropriate frequency settings automatically selected
Digital signal processor - for significant reduction of hissing
Hearing-protection function - operator’s hearing no longer in danger
Filter-optimization function - makes even difficult to distinguish sounds easier to hear
Delayed-action display function - displays the lowest level of noise. More useful than the loudest!
Memory function - no need to remember the last reading.
Record Sounds into Memory via Built-In Audio Recorder
Built-in re-chargeable batteries - integral charging/buffering
Automatic, battery level display of ALL Components
In Case Charging
Operating time: approx. 12 hours
Operating / storage temperature: -10 °C ... +50 °C / -25 °C ... +70 °C
Weight: approx. 1.0 kg
Dimensions (W x H x D): approx. 12,5 x 18 x 6,5 cm
