How Ultrasonic Flow Meters Work

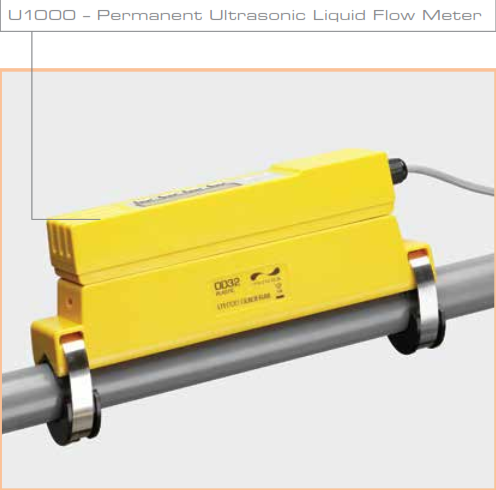

The U1000 is a Fixed, clamp-on, pipe
mounted, ultrasonic flow meter, which delivers significant installation
savings and dry servicing benefits for a wide range of pipe sizes.
- Fully adjustable for pipe sizes
3/4" to 4.5" (22mm-115mm) OD.
- Simplified guide rail & sensor assembly – simple installation.
- Clamp-on non-invasive & low install cost.
- LCD with backlight – install & service information.
- Integrated pulse and optional 4-20mA output – aM&T & BEM’s compatible.
Key Benefits
- Accuracy: +/-1-3% of flow reading for >0.3m/s.- Flow Velocity Range: 0.1 to 10m/s, bidirectional.
- Pipe Range: 3/4" to 4.5" (22mm-115mm) OD.
- Water Temp Range: 0°C to 85°C.
- Flow Rate Output: Optional 4-20mA.
- Volume Output: Pulse or Frequency.
- External Power Supply: 12V-24V +/- 10% AC/DC at 7 watts.
- Electronics Enclosure: IP54.
- Input/Output Cable: 5m x 6 core for power in and data out.
Optional Items
- 4-20 mA Output
- Data Loggers
- Solar/Battery Power Systems
- Remote Monitoring
